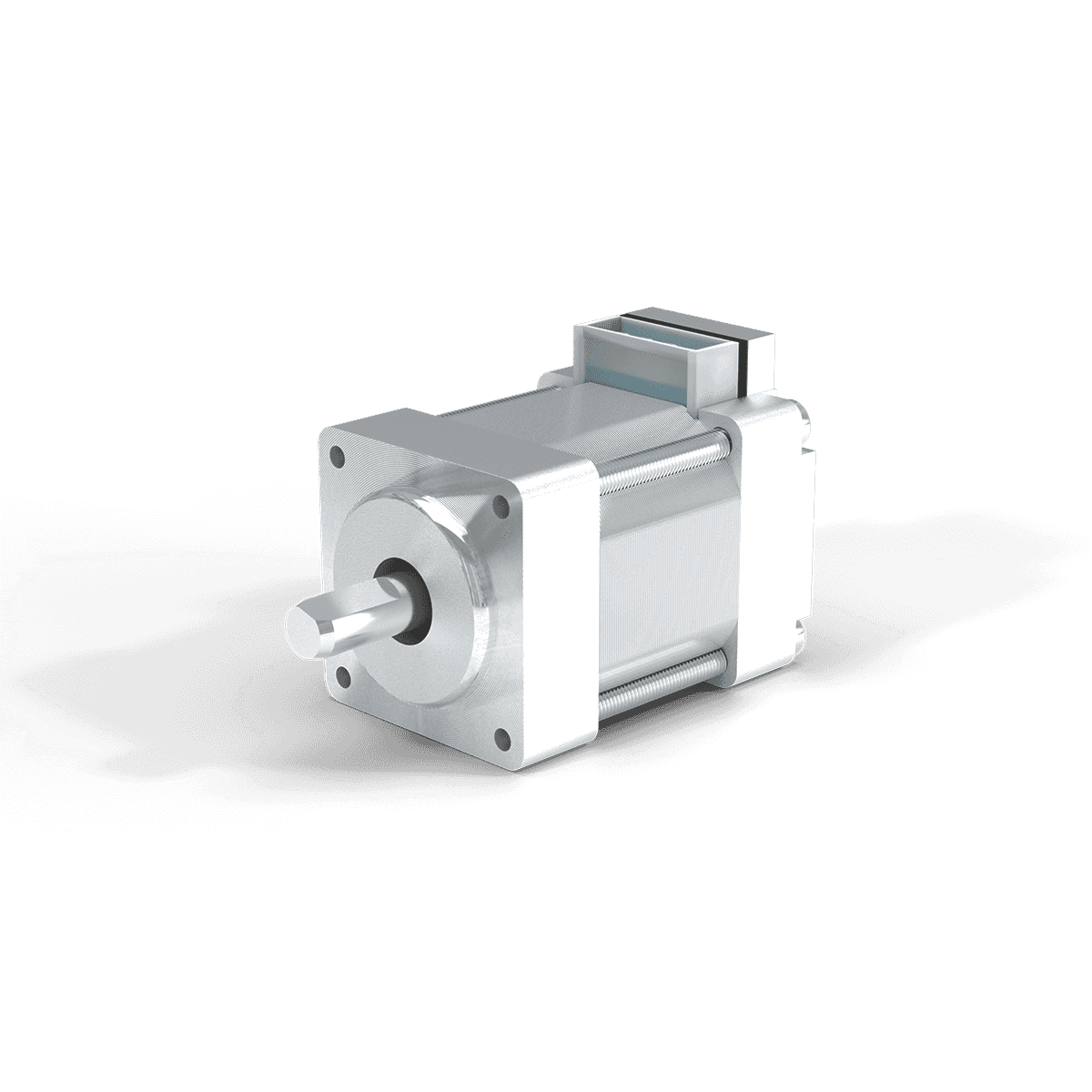

VX208-030-A02
Space Qualified Hybrid Stepper Motor
Motor Overview:
- 2-phase Hybrid Stepper Motor
- NEMA 8 | 20.3 mm (0.8 in) frame size
- 1.8 degree step angle
- 29.5 mm (1.16 in) length
- 0.030 Nm (4.2 oz-in) holding torque
Features:
- Low outgassing, rated for vacuum up to 10E-8 Torr
- Low and high temperature operation of -80C to +200C*
- Shock and vibration proof design
- EMI shielding
- High efficiency/low power draw
- Light weight/high power density
Options:
- Through-hole shaft
- Dual shafts
- Customized leads and connectors
- Bearings and Greases
- Redundant Winding
Many more customizations are available upon request.
Motor Specifications
Performance Curve
Motor Dimensions
AMS Advantage
ITAR Registered
AMS is an ITAR-registered company that is fully compliant with the International Traffic in Arms Regulations (ITAR) for space applications. This means that we have implemented the necessary measures to ensure that our products and services comply with U.S. export control laws and regulations. Our ITAR registration allows us to work with customers who require ITAR compliance, including the defense and aerospace industries, and demonstrates our commitment to maintaining the highest standards of quality and compliance.
Quality Assurance
AS9100D, ISO9001, IPC620, DO160 Certified
AMS places a strong emphasis on quality assurance to ensure that our motors meet the highest standards of performance and reliability for space applications. We manufacture in accordance with AS9100D in the aerospace industry.
Space Heritage
AMS boasts an extensive space heritage with a proven track record of mission success in LEO, GEO, and Deep Space applications. Our motors have been used in a wide range of critical space missions, including scientific exploration, Earth observation, and communication satellite deployments, among others. We understand the unique challenges of space environments and are committed to providing our customers with the highest quality products that are optimized for reliable and efficient operation in these extreme conditions.
Request a Quote For The VX208-030-A02
Connect with AMS to start your next space-related project by calling, emailing, or filling out our RFQ form below.
