AltusPro | Frameless Torque Motors

Motor Overview:

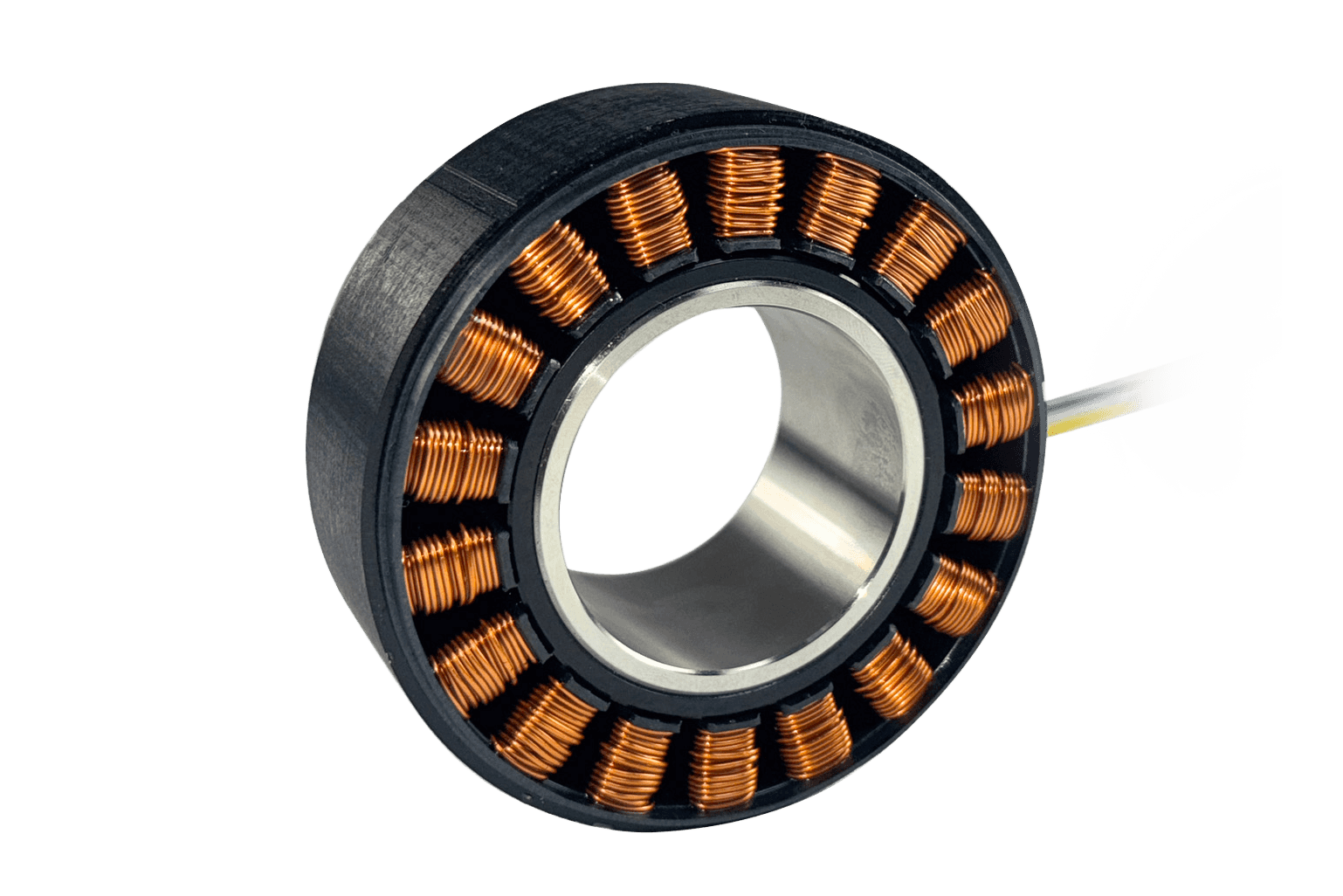

Frameless BLDC Torque Motors
94 mm frame size
12.7 mm (0.5 in) stack length
1.693 Nm (239.7 oz-in) rated torque
5.446 Nm (771.2 oz-in) peak torque
5812 PRM rated speed
1030 W rated power output
48 VDC rated voltage

Features:

Highly Integrated
High Torque
High Efficiency
Optional Hall Sensors

Options:

Customized leads and connectors
Redundant Winding

Many more customizations are available upon request.

Motor Sepcifications

Performance Specifications

Bus Voltage (Vbus):

48 VDC

Max Cont. Torque (Tcont):

2.258 Nm

Max Cont. Current (Icont):

29.54 Arms

Peak Torque (Tpk):

5.446 Nm

Peak Current (Ipk):

70.46 Arms

Rated Torque (Trtd):

1.693 Nm

Rated Power (Prtd):

1030 W

Rated Speed (Nrtd):

5812 RPM

Electrical Specifications

Rm at Tamb:

0.038 Ω

LM:

0.0741 mH

Back EMF:

7.408 Vpk / kRPM

Kt at Temp:

0.076 N·m/Arms

Km:

0.363 Nm/√W

Commutation:

sine

NL Comm Freq:

1080 Hz

Mechanical Specifications

Stator OD:

94 mm

Rotor ID:

47 mm

Stack Length:

12.7 mm

Weight:

0.498 kg

Poles:

Operating Specifications

Ambient Temp:

25 °C

Winding Temp:

155 °C

Heat Sink:

10" x 10" x 0.375"

Performance Curve

Motor Dimensions

Dimension A (Stack Length):

12.7 mm (0.5 in)

Dimension B (Rotor ID):

47.0 mm (1.85 in)

AMS Advantage

ITAR Registered
